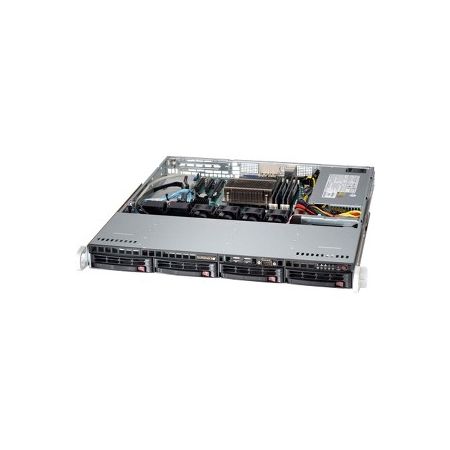

Supermicro SuperServer 5018D-MTF Barebone System - 1U Rack-mountable - Intel C224 Express Chipset - Socket H3 LGA-1150 - 1 x Processor Support - Black Item # 275869
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
275869
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
This SuperServer is designed to deliver solid performance, mission-critical reliability for customer applications and power-efficiency.
Product Details
| Item # | 275869 |
| Manufacturer # | 11121830 |
| Number of SATA Interfaces | 6 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 5, 10 |
| Processor Supported | Xeon; Core i3; Pentium; Celeron |
| Maximum Power Supply Wattage | 350 W |
| height | 1.7 in |
| Certifications & Standards | ACPI 1.0 / 2.0 |
| Total Number of USB Ports | 12 |
| Graphics Controller Manufacturer | ASPEED |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 5018D-MTF (Black); 1 x Super X10SLM-F Motherboard; 1 x 1U Chassis; 1 x BPN-SAS-815TQ-O-P; 1 x 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF; 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG; 1 x RSC-RR1U-E16 with PCI-E x16 output; 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156; 1 x 1U 350W MULTI OUTPUT 80PLUS GOLD PWS; 1 x Front ctrl cable 16 PIN TO 16 PIN, LF, Flat (L=54cm); 4 x 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M; 4 x Black 3.5 |
| depth | 19.8 in |
| Product Name | SuperServer 5018D-MTF (Black) |
| Number of PCI Express x16 Slots | 1 |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| Number of 3.5" Bays | 4 |
| VGA | Yes |
| weight | 17.64 lb |
| RAID Supported | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| brand name | Supermicro |
| Number of Processors Supported | 1 |
| Maximum Memory | 32 GB |
| Number of Total Memory Slots | 4 |
| controller type | Serial ATA/300; Serial ATA/600 |
| Number of USB 3.0 Ports | 4 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 6 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1600/PC3-12800 |
| Power Factor Correction | Yes |
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 1 |
| Processor Socket | Socket H3 LGA-1150 |
| Chipset Model | C224 Express |
| Number of Total Expansion Bays | 4 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | AST2400 |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| color | black |
| warranty length | 3-year limited |
| model name | 5018D-MTF |
| Show More ▾ |
